Shell Molding Process

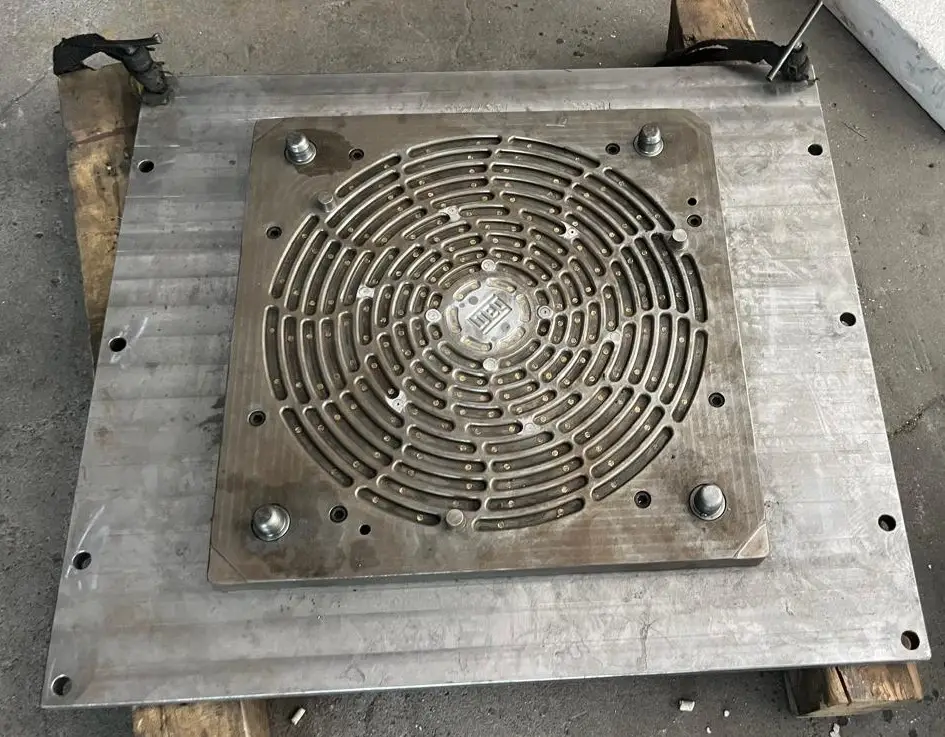

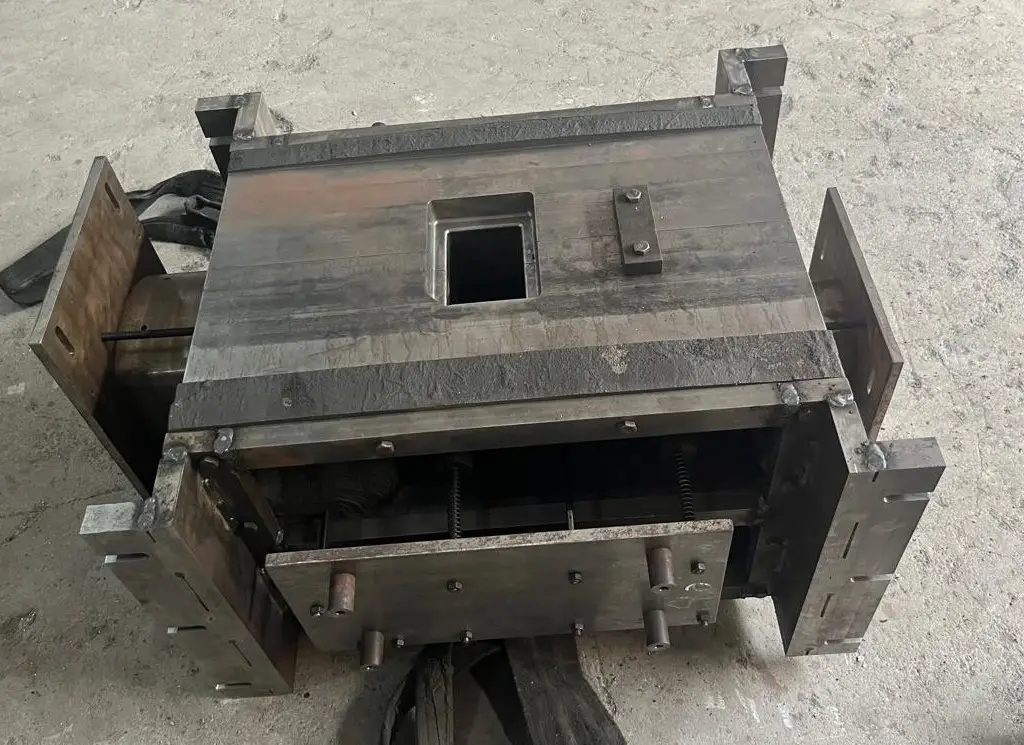

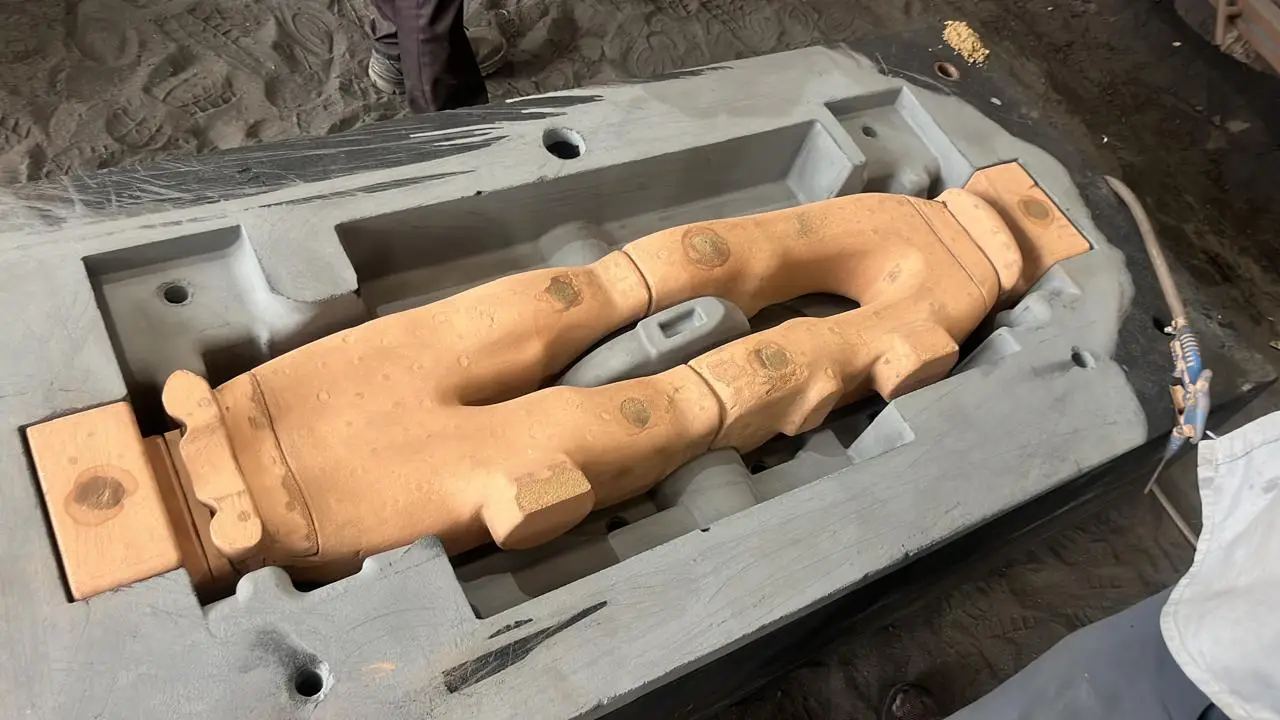

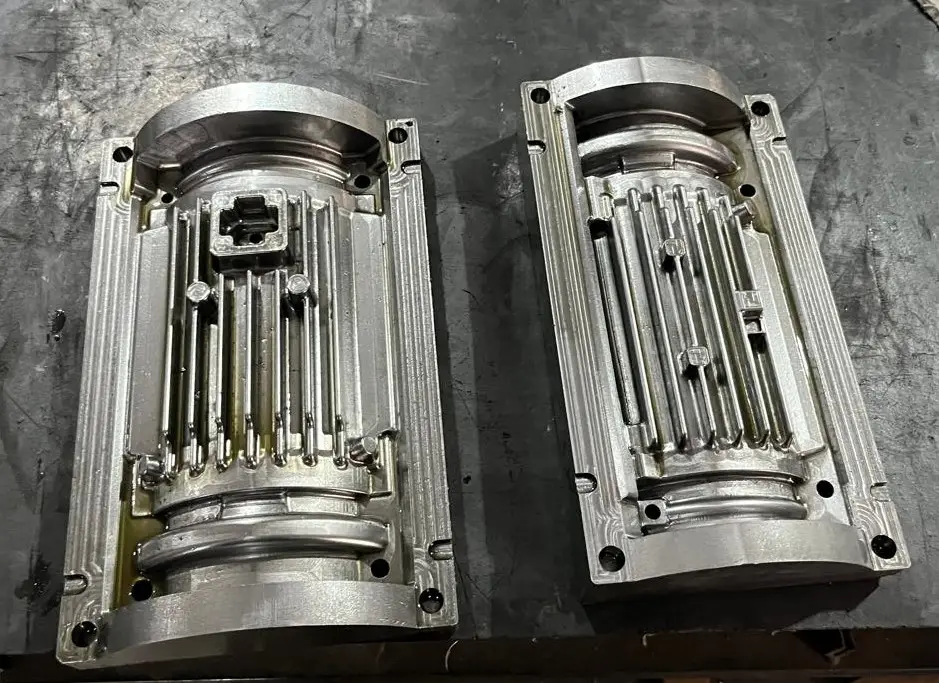

Shell Molding is a precision-oriented casting process offered by Tech Line Engineering, ideal for producing small to medium-sized components with excellent dimensional accuracy and surface finish. This process uses resin-coated sand heated over metal patterns to form thin, rigid shell molds, ensuring high repeatability and consistent quality.

Casting Size Range Small to medium-sized components
Material Compatibility Cast Iron, Ductile Iron, Carbon Steel
Production Volume Medium-volume production
Surface Finish Smooth and uniform as-cast finish with reduced machining
Request Quote Datasheet

Design Features

  • High Dimensional Accuracy

    Thin, rigid shell molds provide excellent dimensional control and repeatability.

  • Smooth Surface Finish

    Resin-coated sand produces a finer as-cast surface with reduced machining.

  • Uniform Wall Thickness

    Controlled mold formation ensures consistent wall sections and reduced defects.

  • High Repeatability

    Metal pattern heating delivers consistent mold quality across production batches.

  • Efficient Production Cycle

    Short mold curing and assembly times support medium-volume manufacturing.

  • Consistent Casting Quality

    Stable shell strength and controlled pouring ensure reliable, defect-free castings.

Engineered Solutions

Precision Pattern Manufacturing Range

Engineered for dimensional accuracy, durability, and repeatability. Our pattern solutions support consistent, high-quality casting across industries.

Lost Foam Casting Process

Lost Foam Casting is an advanced casting process that uses foam patterns to produce accurate and high-quality metal components. We specialize in manufacturing dies and foam patterns for Lost Foam Casting, ensuring precision, consistency, and excellent casting results.

No Bake Molding Process

No Bake Casting is a sand casting process that uses chemically bonded sand to produce strong, accurate, and high-quality castings. We provide precision patterns and tooling for No Bake Casting, ensuring durability, dimensional accuracy, and reliable production results.

High Pressure Molding Process

High Pressure Molding is an automated molding process that produces consistent, high-accuracy sand molds at high production rates. We manufacture precision patterns and tooling for High Pressure Molding, ensuring strength, accuracy, and repeatable casting quality.

Shell Molding Process

Shell Molding is a precision casting process that uses resin-coated sand to create thin, strong molds with excellent surface finish. We design and manufacture high-quality patterns and tooling for Shell Molding, ensuring accuracy, consistency, and superior casting results.

Green Sand Molding Process

Green Sand Molding is a traditional and cost-effective casting process that uses sand, clay, and water to produce a wide range of cast components. We manufacture durable and precise patterns and tooling for Green Sand Molding, ensuring reliable molds and consistent casting quality.

Investment Casting Process

Investment Casting is a precision casting process that uses wax patterns and ceramic molds to produce complex parts with excellent surface finish. We provide accurate patterns and tooling for Investment Casting, ensuring high dimensional accuracy and consistent casting quality
